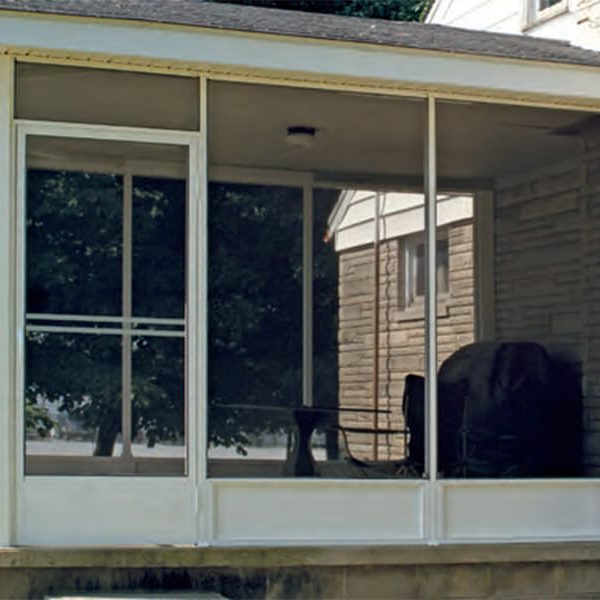

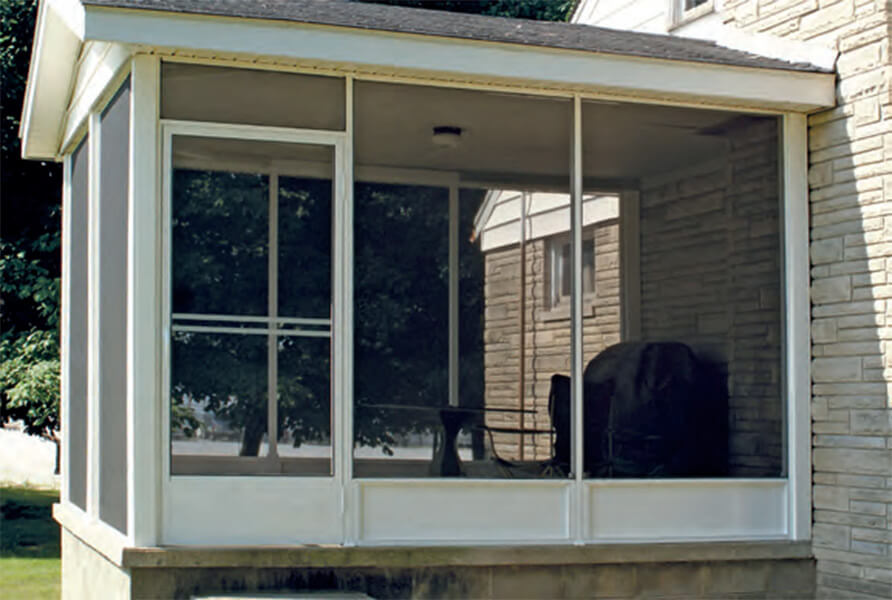

ScreenRail

Expand your living area by bringing the outdoors inside. ScreenRail allows you to enjoy the outdoors without the insects. Featuring the option of either a structural balcony/railing system or heavy-duty kick panel system, easy to assemble sections, assembled universal door (right or left hand hinge) with heavy-duty frame, and durable flat spline to secure screen. With a Lifetime Limited Warranty and a virtually maintenance-free product, Screen Rail is a premium system designed to keep you outdoors without being “bugged” by insects.

  • Structural balcony and railing system
  • Available heavy duty kick panel helps protect screen damage from feet and pets
  • Easy to assemble 4’, 6’ and 8’ sections
  • Assembled universal door (right or left hand hinge) with heavy duty frame
  • Certified PCI 4000 A-2 (AAMA 2604) compliant powder coating
  • Durable flat spline secures screen
  • Different size screen material keeps gnats, black flies, and mosquitoes out
  • Available in 12 colors

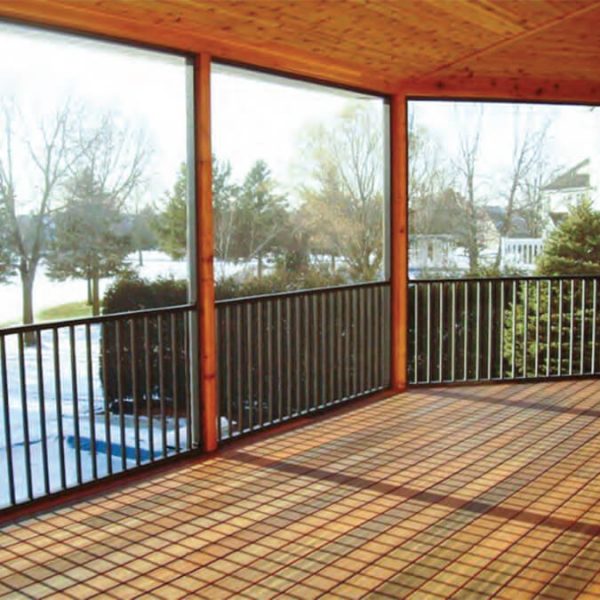

ScreenRail with Structural Railing

Specifications
Lengths 4′, 6′, 8′
Heights 36″, 42″
Rail Size 2″ (.063″) w x 1-1/4″ (.063″) t
Baluster Size: 3/4″ x 3/4″ (.045″)
Frame Rail Size 2” (.045”) w x 1-1/4” (.045”) t
Frame Rail Lengths 8-1/2′, 12′
Post Size 2″ x 2″ (.090″)
Post Lengths 8-1/2′, 9-1/2′, 11-1/2′
Door Widths 32″, 36″
Door Height 80″

ScreenRail Post

2″ Post
8-1/2′, 9-1/2′, 11-1/2

ScreenRail Frame Rail

Frame Rail
8-1/2′, 12′

ScreenRail Post Mount

Post Mount

ScreenRail Railing Section Mount

Railing Section Mount

ScreenRail Top/Bottom Mount

Top/Bottom Rail



ScreenRail  with Heavy Duty Kick Panel Sections

Specifications
Lengths 4′, 6′, 8′
Post Size 2″ x 2″ (.090)
Post Lengths 8-1/2′, 9-1/2′, 11-1/2′
Door Widths 32″, 36″
Door* Height 80″

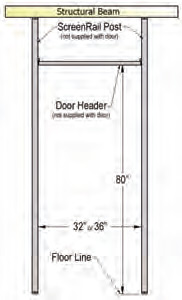

ScreenRail - Door

Door kit includes a frame, matching door jamb, door header with mounts, hinges, latch, closer kit, door sweep, and spline.

ScreenRail - Kick Panel

ScreenRail - Mid rail

Door Header and Mid Rail

ScreenRail - Kick Panel Mount

Kick Panel Mount

ScreenRail - Kick Panel Rail

Kick Panel Rail

Step 1

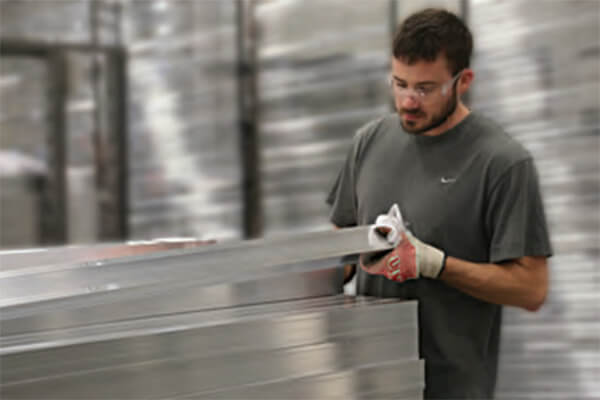

Powder Coat - Step 1

The raw premium-grade aluminum is inspected to be free of blemishes and is not exposed to the outdoor elements.

Step 2

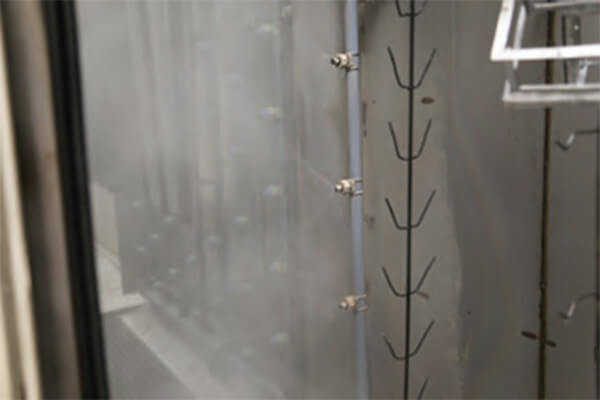

Powder Coat - Step 2

The product enters a heated acidic cleaning stage to remove extrusion debris and fabrication oils.

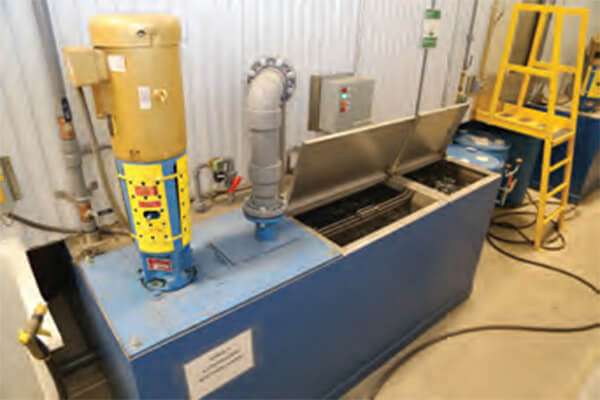

Steps 3 to 6

Powder Coat - Step 3 to 6

CLEAN: City water rinse
CLEANER: Recycling reverse osmosis water rinse
CLEANTEST: Pure reverse osmosis water rinse
SEALER: Dried-in-place aluminum sealer

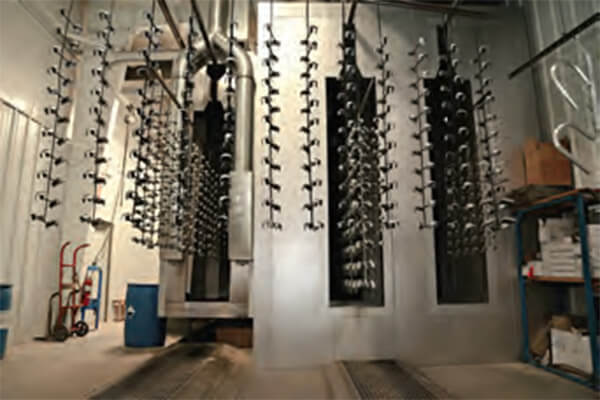

Steps 7 and 8

Powder Coat - Step 7 and 8

A 200 MPH air blast removes water drops from the pre-treated aluminum. A convection oven completes the dry-off process.

Step 9

Powder Coat - Step 9

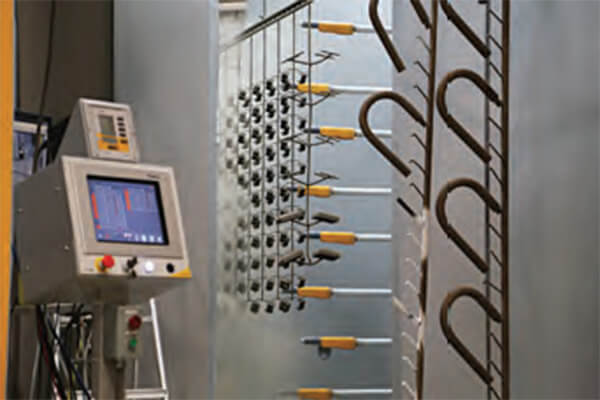

Powder is applied with 18 automated and 2 manual spray guns. Compressed process air is dried to -35°F Dew Point for superior adhesion.

Step 10

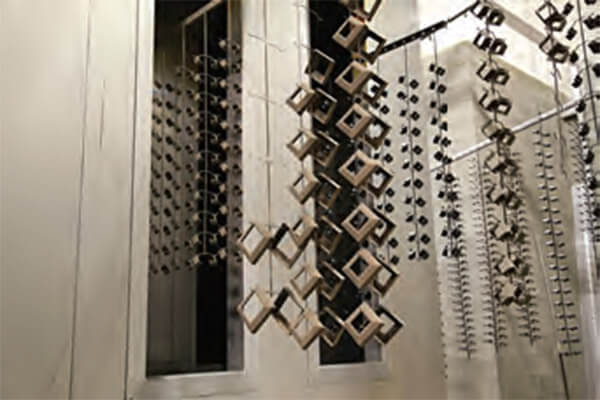

Powder Coat - Step 10

The powder coating is then bonded and adhered to the aluminum sub-straight in a 400 degree cure stage.

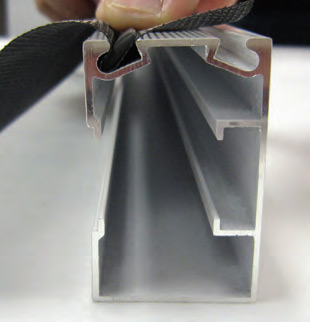

ScreenRail Installation - Step 1

Screen & flat spine inserted into angled screen retention groove to insure tighter fit

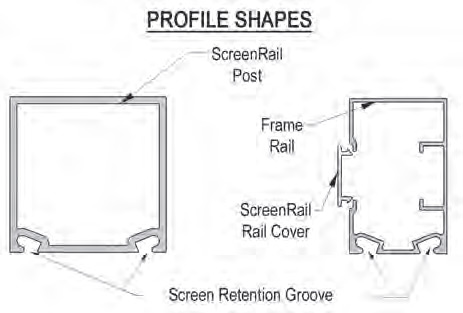

ScreenRail Installation - Step 2

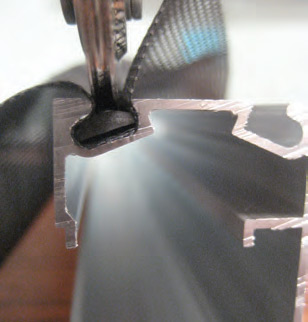

ScreenRail Installation - Step 3

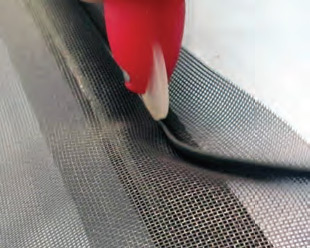

Spline rollers used to fit screen & spline into groove

ScreenRail Installation - Step 4

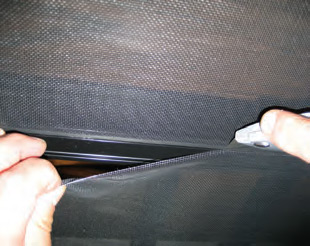

Screen is trimmed

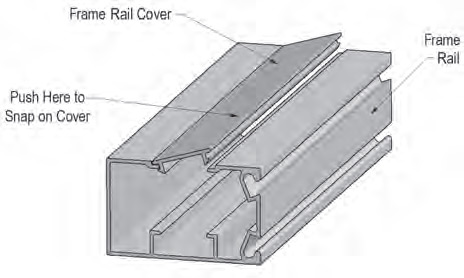

ScreenRail Installation - Step 5

ScreenRail Installation - Step 6

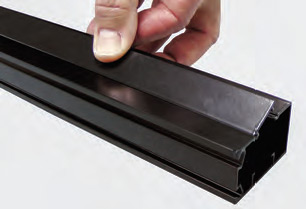

ScreenRail Installation - Step 7   ScreenRail Installation - Step 8

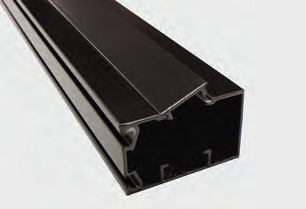

ScreenRail cover snaps into frame rail
