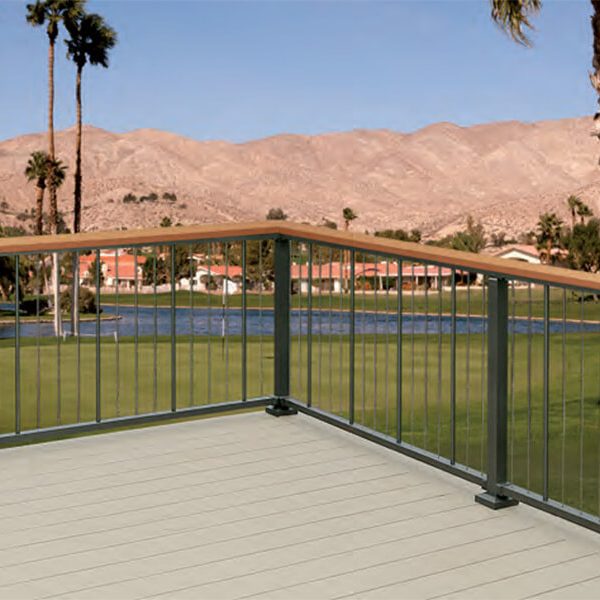

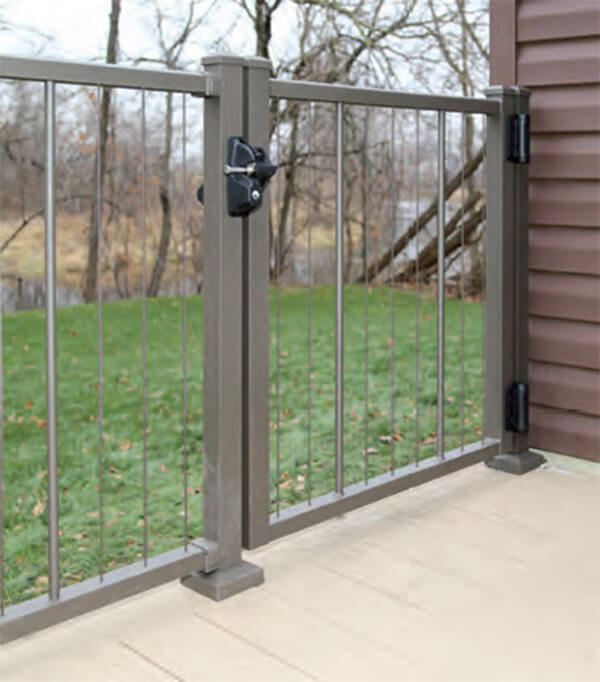

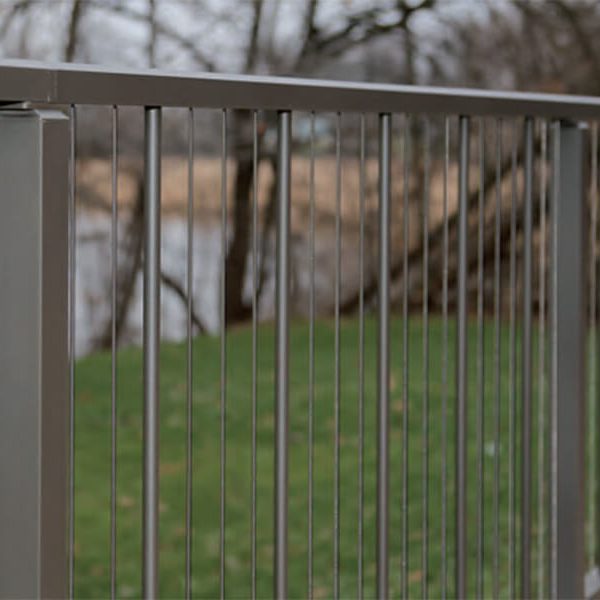

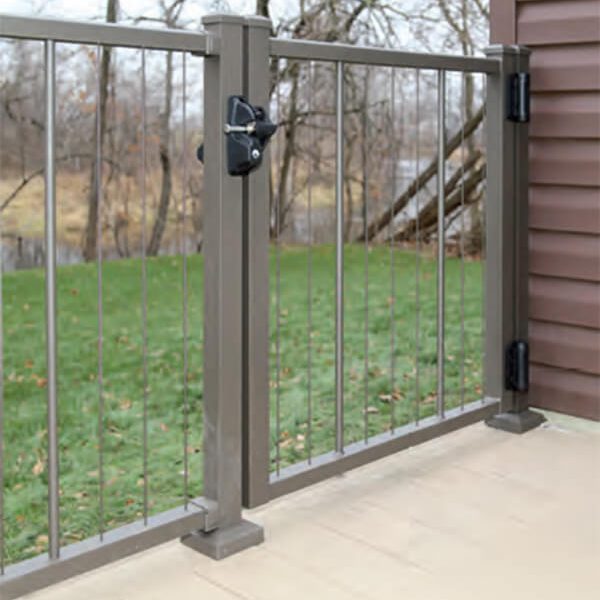

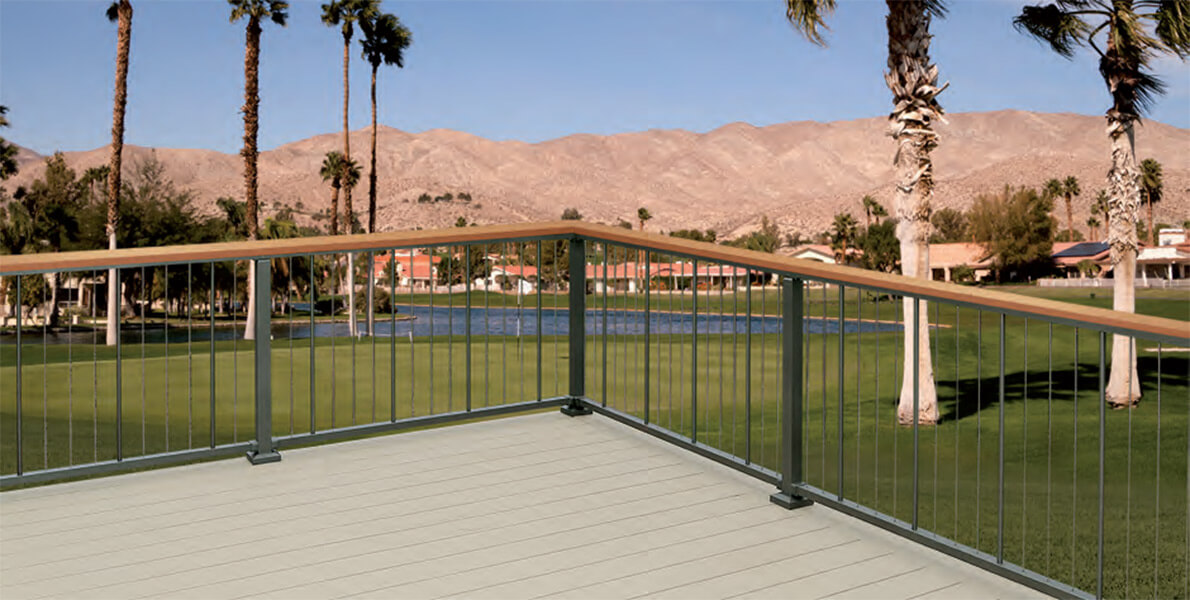

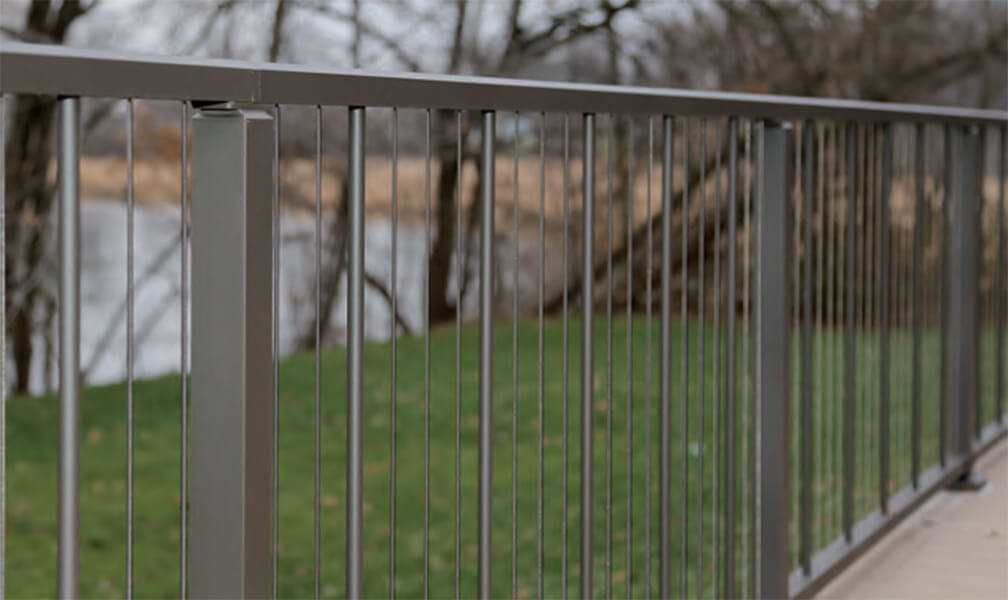

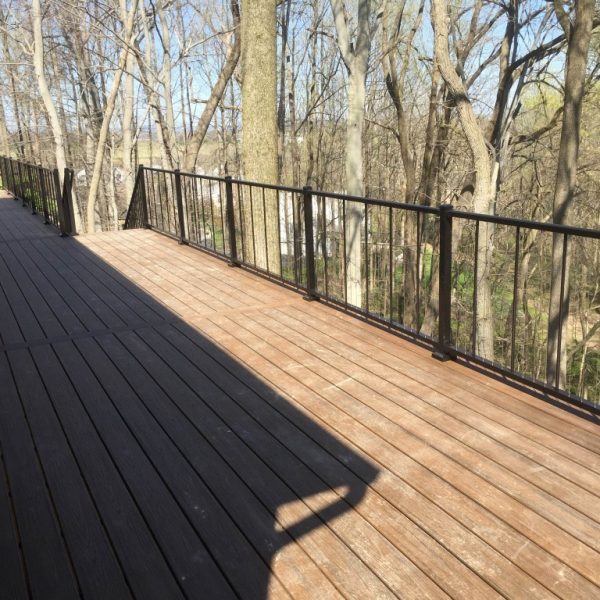

Westbury Verticable C80 Aluminum Railing

Contemporary vertical cables and balusters provide architectural style with a virtually unobstructed view. Sections are factory assembled and tensioned, shipped on pallets ready for quick installation. VertiCableTM hardware mirrors Westbury C-Series products providing consistent design, performance and configuration for the contractor or builder. Available in 12 standard AAMA architectural colors.

  • Section Heights: 36″, 42″
  • Section Lengths: 4′, 5′, 6′, 8′

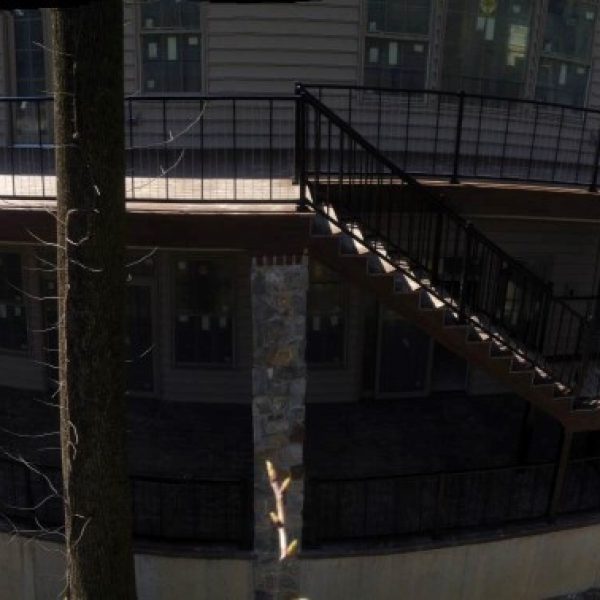

  • Stair Rail Lengths C101 Only: 4′, 5′, 6′, 7′, 8′
  • C80 Baluster: 9/16″ round x (.156″ wall)
  • Baluster Spacing: 3.75″ c/c
  • Stylish Top Rail: 1-3/4″ w (.090″) x 1-3/8″ t (.085″)
  • Bottom Rail: 1-3/4″ w (.090″) x 1-1/4″ t (.120″)
  • 1/8″ Stainless Steel Cable with Fasteners
  • Bottom Rail Support: 8′
  • Available in 12 colors
  • Warranty

*NOTE: End spacing may vary by length.

Where To Buy ⪼

Brackets, Posts, Caps, & Flairs

The finishing touch to your masterpiece… accessories. A variety of post sizes and wall thickness add strength, standard brackets combined with swivel mounts solving many unique scenarios, an option of post caps for a variety of looks finished off by the convenience of 2-piece and 1-piece post flairs create the Westbury Aluminum Railing accessories.

Posts

Aluminum Railing Posts

Brackets

Verticable Brackets

Accessories

Verticable Accessories

Crossovers

Verticable Crossovers

Step 1

Powder Coat - Step 1

The raw premium-grade aluminum is inspected to be free of blemishes and is not exposed to the outdoor elements.

Step 2

Powder Coat - Step 2

The product enters a heated acidic cleaning stage to remove extrusion debris and fabrication oils.

Steps 3 to 6

Powder Coat - Step 3 to 6

CLEAN: City water rinse
CLEANER: Recycling reverse osmosis water rinse
CLEANTEST: Pure reverse osmosis water rinse
SEALER: Dried-in-place aluminum sealer

Steps 7 and 8

Powder Coat - Step 7 and 8

A 200 MPH air blast removes water drops from the pre-treated aluminum. A convection oven completes the dry-off process.

Step 9

Powder Coat - Step 9

Powder is applied with 18 automated and 2 manual spray guns. Compressed process air is dried to -35°F Dew Point for superior adhesion.

Step 10

Powder Coat - Step 10

The powder coating is then bonded and adhered to the aluminum sub-straight in a 400 degree cure stage.

Continuous Aluminum Handrail

ADA compliant railing system includes:

  • 1 3/8″ aluminum rail (8′, 10′, 16′)
  • 1 3/8″ collar ring (to cover splice)
  • Strong internal connector
  • Continuous 180 handrail return
  • Tapered 1-piece wall return
  • Beveled internal end cap
  • Verified AAMA 2604 compliant powder coating
  • Available in all the S10 standard colors
  • Limited lifetime warranty
  • Virtually maintenance free

Continuous Handrail

Drink Rail

Drink Rail

Westbury Drink Rail adapts to all Westbury C Series designs. Pre-drilled and ready to install, Drink Rail mounts sturdily and is ready for your wood or composite material to be attached. Convenient and beautiful, Drink Rail creates the perfect spot for your morning coffee or a cool drink in the afternoon.

  • Pre-Drilled Westbury Aluminum Drink Rail (individually sleeved)
  • #10 x 5/8” Self-Tapping Screws (Attach To Top Rail)
  • #10 x 3/4” Screws (To Attach Deck Boards)
  • Drink Rail Length: 74” & 98”
  • Drink Rail Width: 3¼”
  • Supports Wood or Composite Deck Board
  • Lifetime Limited Warranty
  • Installs on Westbury C Series Crossover Post System
  • Available in all the Westbury Standard Colors
  • Deck Board Not Included
