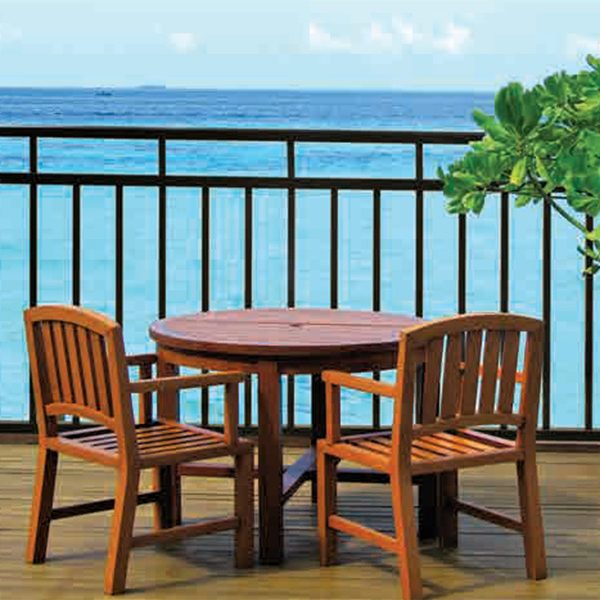

Westbury Riviera C33 & C331 Aluminum Railing - Image 2

Westbury Riviera C33 & C331 Aluminum Railing

Riviera III Series encompasses the 3-rail design with a unique top design. This design places every third Baluster in the top section while the bottom section contains balusters within the entire section. Style C33 is created with 3/4″ square balusters. Style C331 captures a different feel with 3/4″ round balusters.

Railing Heights: 36″, 42″
Railing Lengths: 4′, 5′, 6′, 7′, 8′
Stair Rail Lengths: 4′, 5′, 6′, 7′, 8′
C33 Baluster: 3/4″ x 3/4″ x (.045″ wall)
C331 Baluster: 3/4″ Round (.060″ wall)
Baluster Spacing: 3.875″, 3.625″ Stairs
Stylish Top Rail: 1-3/4″ w (.090″) x 1-3/8″ t (.085″)
Mid Rail: 1-3/4″ w (.070″) x 1-1/4″ t (.070″)
Bottom Rail: 1-3/4″ w (.090″) x 1-1/4″ t (.120″)
Vinyl Insert Baluster Retainer (Top, Mid and Bottom Rails)
Bottom Rail Support: 5′, 6′, 7′, 8′
Standard Gates: 36”W and 48”W Openings (Custom Sizes Available)
Available in 12 colors
Warranty

NOTE: Baluster end spacing may vary by length. All sections do not come out even on each end as shown above.

Where To Buy ⪼

Accessories
Powder Coating
Continuous Handrail
Drink Rail

Brackets, Posts, Caps, & Flairs

The finishing touch to your masterpiece… accessories. A variety of post sizes and wall thickness add strength, standard brackets combined with swivel mounts solving many unique scenarios, an option of post caps for a variety of looks finished off by the convenience of 2-piece and 1-piece post flairs create the Westbury Aluminum Railing accessories.

Posts

Brackets

Accessories

Crossovers

Step 1

Powder Coat - Step 1

The raw premium-grade aluminum is inspected to be free of blemishes and is not exposed to the outdoor elements.

Step 2

Powder Coat - Step 2

The product enters a heated acidic cleaning stage to remove extrusion debris and fabrication oils.

Steps 3 to 6

Powder Coat - Step 3 to 6

CLEAN: City water rinse
CLEANER: Recycling reverse osmosis water rinse
CLEANTEST: Pure reverse osmosis water rinse
SEALER: Dried-in-place aluminum sealer

Steps 7 and 8

Powder Coat - Step 7 and 8

A 200 MPH air blast removes water drops from the pre-treated aluminum. A convection oven completes the dry-off process.

Step 9

Powder Coat - Step 9

Powder is applied with 18 automated and 2 manual spray guns. Compressed process air is dried to -35°F Dew Point for superior adhesion.

Step 10

Powder Coat - Step 10

The powder coating is then bonded and adhered to the aluminum sub-straight in a 400 degree cure stage.

Continuous Aluminum Handrail

ADA compliant railing system includes:

1 3/8″ aluminum rail (8′, 10′, 16′)
1 3/8″ collar ring (to cover splice)
Strong internal connector
Continuous 180 handrail return
Tapered 1-piece wall return
Beveled internal end cap
Verified AAMA 2604 compliant powder coating
Available in all the S10 standard colors
Limited lifetime warranty
Virtually maintenance free

Drink Rail

Westbury Drink Rail adapts to all Westbury C Series designs. Pre-drilled and ready to install, Drink Rail mounts sturdily and is ready for your wood or composite material to be attached. Convenient and beautiful, Drink Rail creates the perfect spot for your morning coffee or a cool drink in the afternoon.

Pre-Drilled Westbury Aluminum Drink Rail (individually sleeved)
#10 x 5/8” Self-Tapping Screws (Attach To Top Rail)
#10 x 3/4” Screws (To Attach Deck Boards)
Drink Rail Length: 74” & 98”
Drink Rail Width: 3¼”
Supports Wood or Composite Deck Board
Lifetime Limited Warranty
Installs on Westbury C Series Crossover Post System
Available in all the Westbury Standard Colors
Deck Board Not Included
