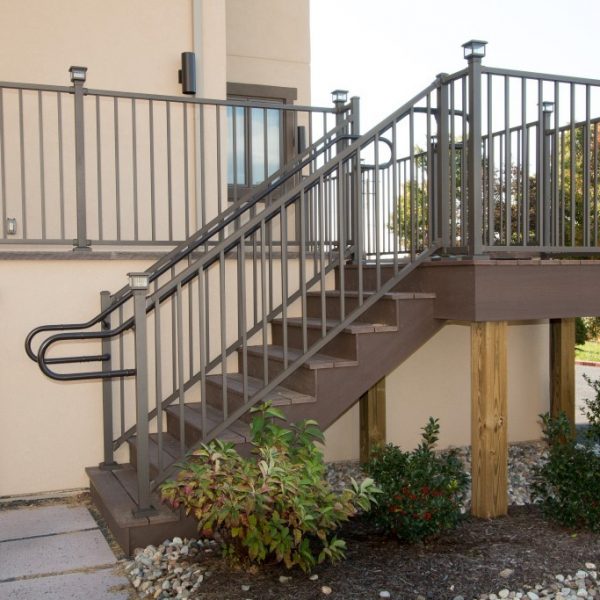

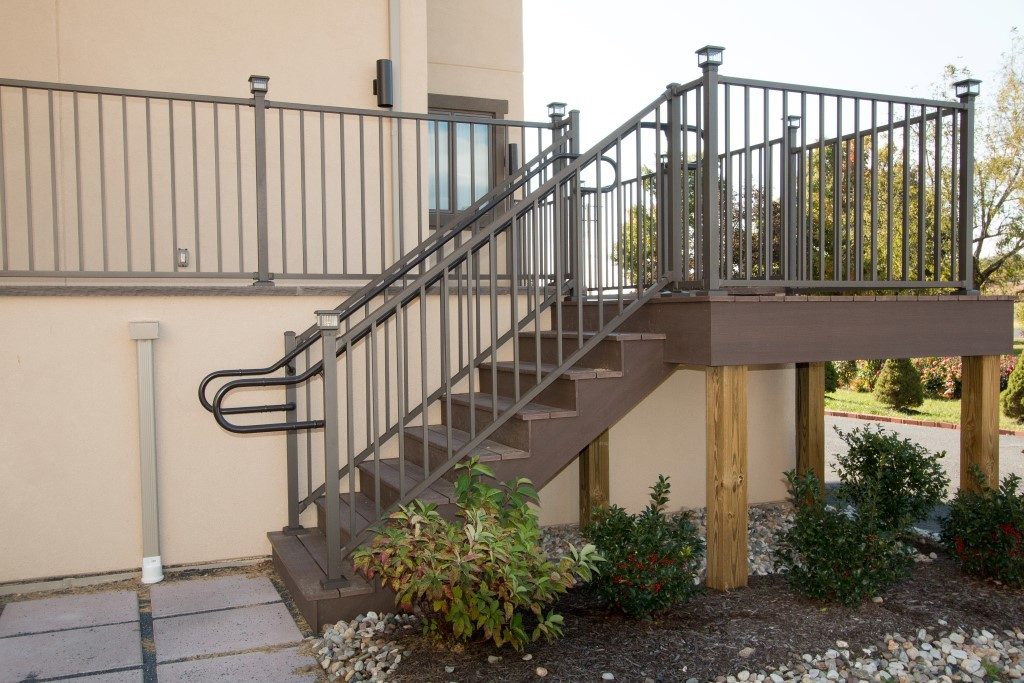

Westbury Liberty S10 Aluminum Railing

We offer attractive Westbury Aluminum Railing for your convenience! You can locate a chic Westbury Liberty S10 Aluminum Railing through us. We distribute many different Westbury Aluminum Railing brands, enabling our customers to enjoy wholesale prices on some of the most fashionable aluminum railing systems available in the home improvement marketplace today!

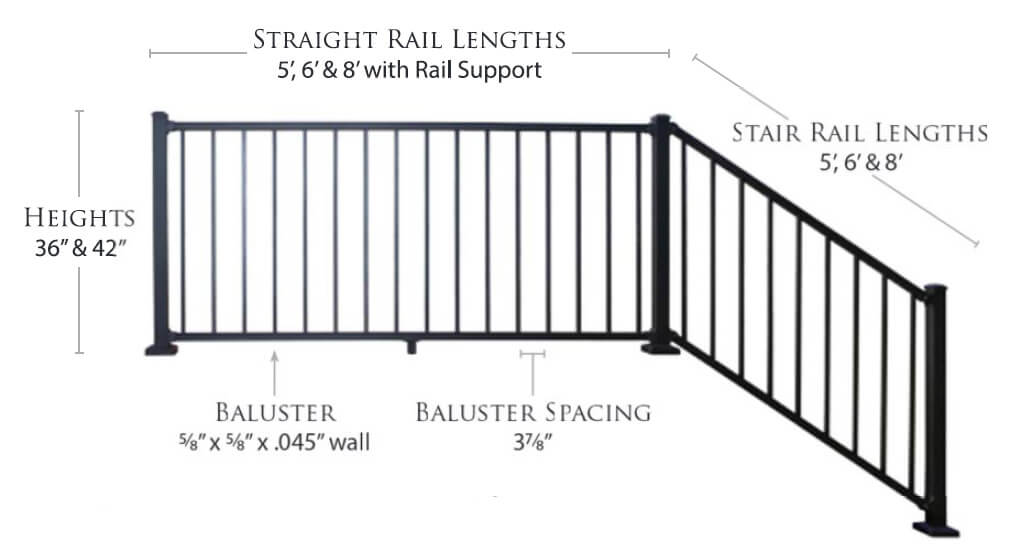

Westbury Liberty S10 Specifications

Westbury Liberty S10 Specifications
Straight Rail Lengths 5′, 6′ & 8′ with Rail Support
Heights 36″ & 42″
Baluster 5/8″ x 5/8″ x .045″ wall
Baluster Spacing 3 7/8″
Stair Rail Lengths 5′, 6′ & 8′

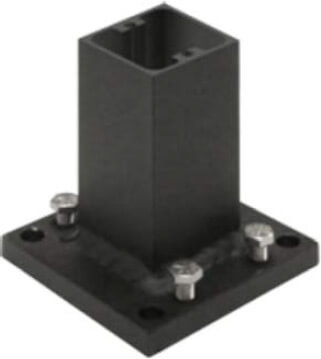

Liberty S10 Heavy Duty Post

Heavy Duty 2″ Post

IRC .093 Wall
1/2″ h x 3 7/8 sq. plate

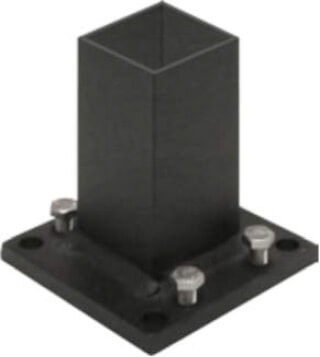

Liberty S10 Standard Post

Standard 2″ Post

.090 Wall
3/8″ h x 3 7/8 sq. plate

Liberty S10 Top Rail

Stylish Top Rail

1 3/4″ w x 1 3/8″ h

Liberty S10 Bottom Rail

Bottom Rail

1 3/4″ w x 1 1/4″ h

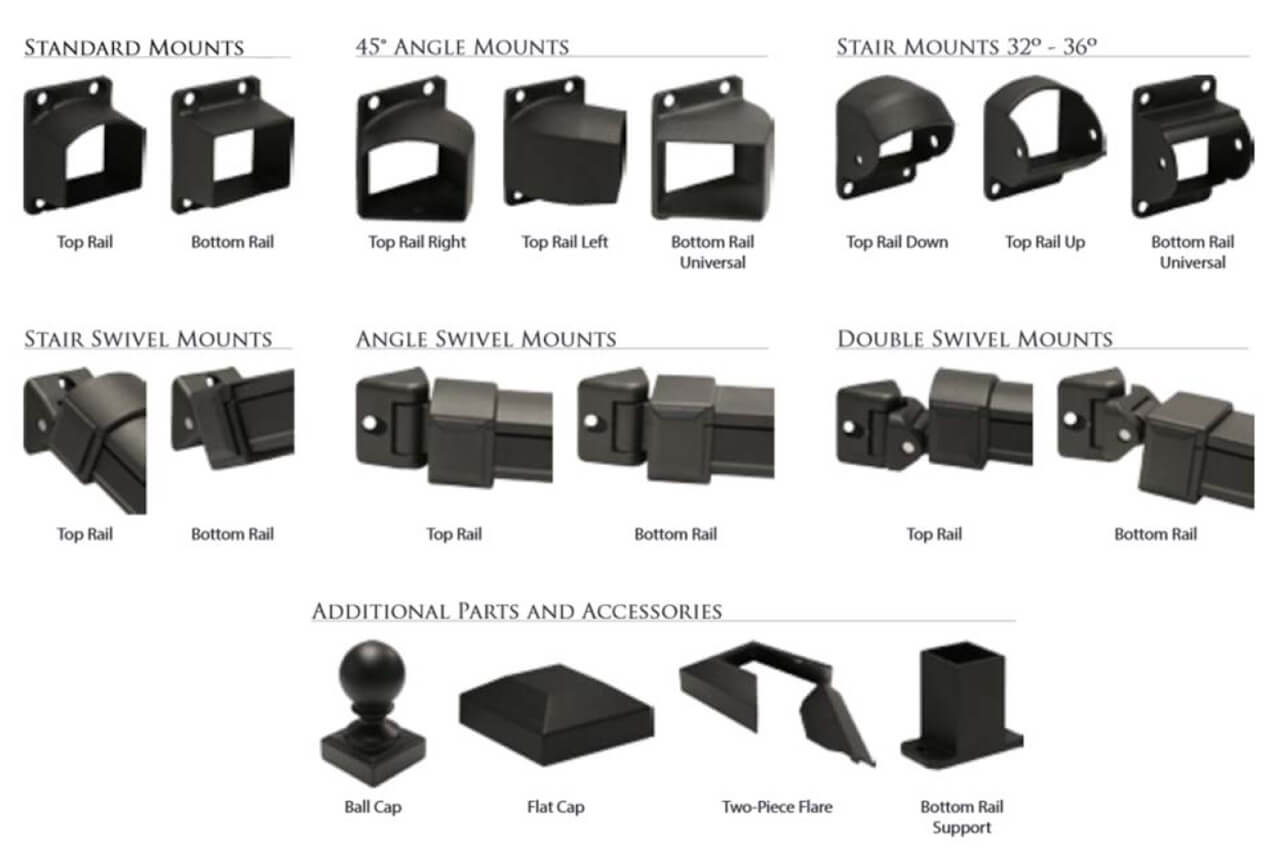

Liberty S10 Mounts and Accessories

Step 1

Powder Coat - Step 1

The raw premium-grade aluminum is inspected to be free of blemishes and is not exposed to the outdoor elements.

Step 2

Powder Coat - Step 2

The product enters a heated acidic cleaning stage to remove extrusion debris and fabrication oils.

Steps 3 to 6

Powder Coat - Step 3 to 6

CLEAN: City water rinse
CLEANER: Recycling reverse osmosis water rinse
CLEANTEST: Pure reverse osmosis water rinse
SEALER: Dried-in-place aluminum sealer

Steps 7 and 8

Powder Coat - Step 7 and 8

A 200 MPH air blast removes water drops from the pre-treated aluminum. A convection oven completes the dry-off process.

Step 9

Powder Coat - Step 9

Powder is applied with 18 automated and 2 manual spray guns. Compressed process air is dried to -35°F Dew Point for superior adhesion.

Step 10

Powder Coat - Step 10

The powder coating is then bonded and adhered to the aluminum sub-straight in a 400 degree cure stage.

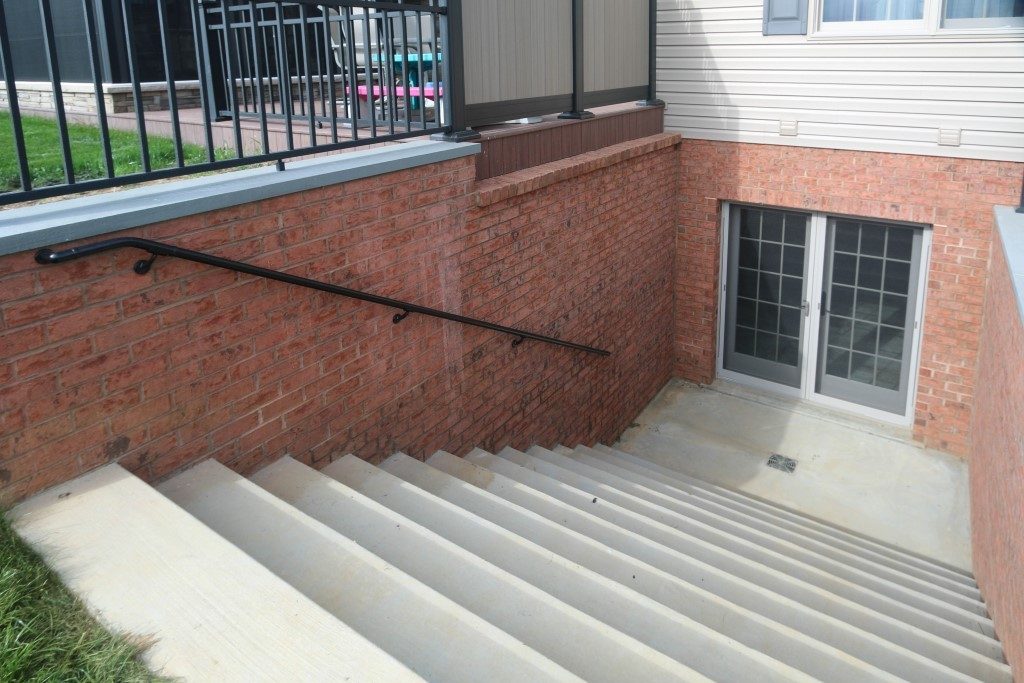

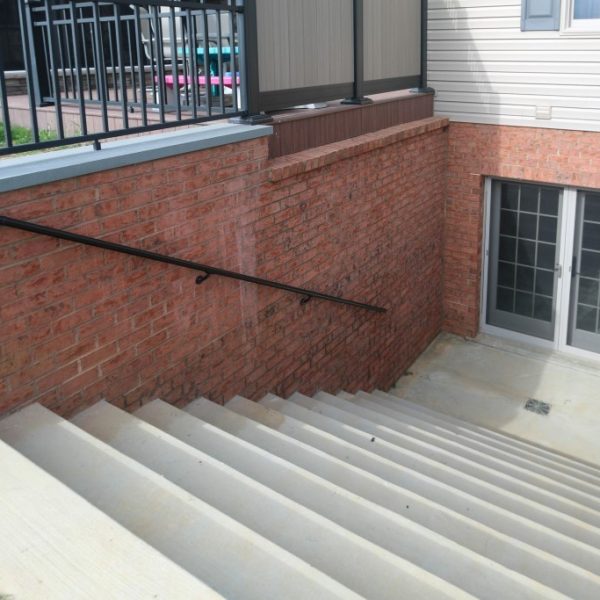

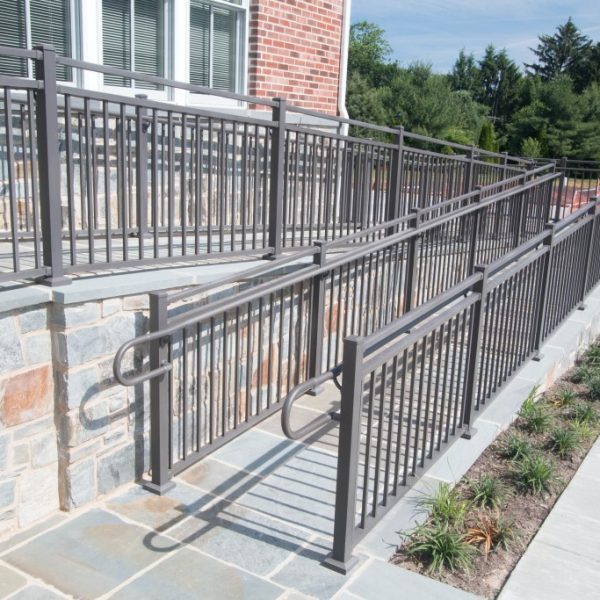

Continuous Aluminum Handrail

ADA compliant railing system includes:

  • 1 3/8″ aluminum rail (8′, 10′, 16′)
  • 1 3/8″ collar ring (to cover splice)
  • Strong internal connector

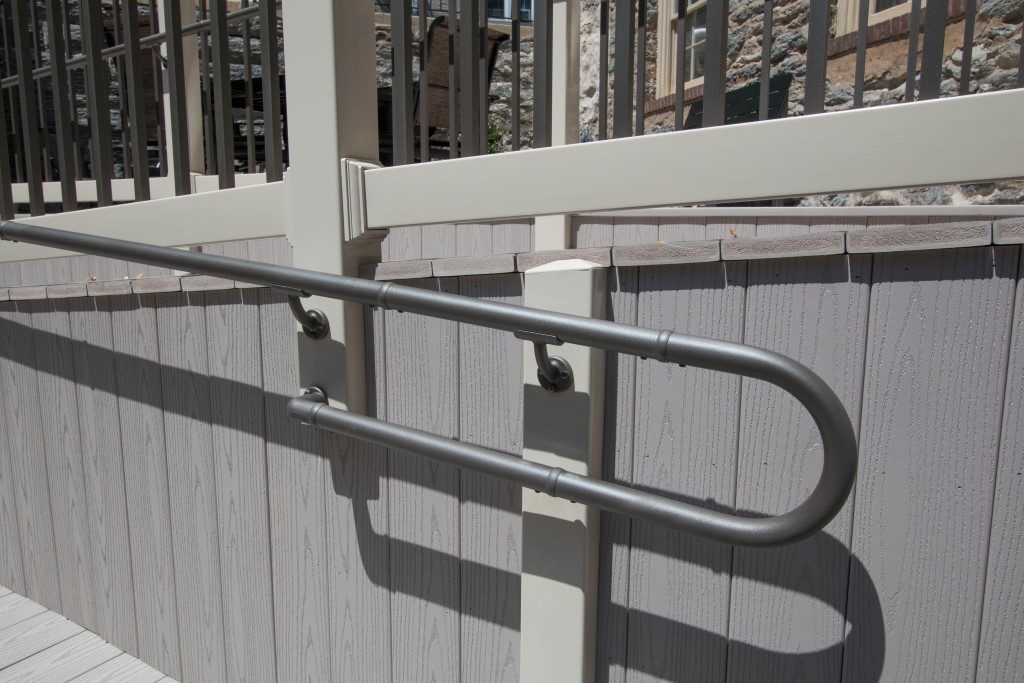

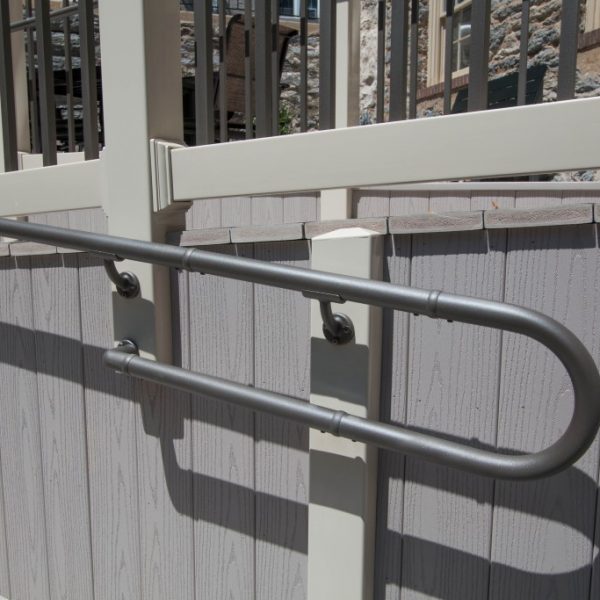

  • Continuous 180 handrail return
  • Tapered 1-piece wall return
  • Beveled internal end cap
  • Verified AAMA 2604 compliant powder coating
  • Available in all the S10 standard colors
  • Limited lifetime warranty
  • Virtually maintenance free

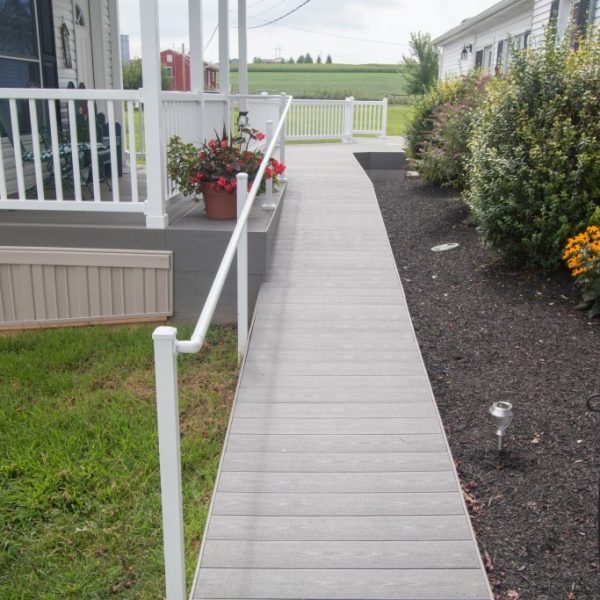

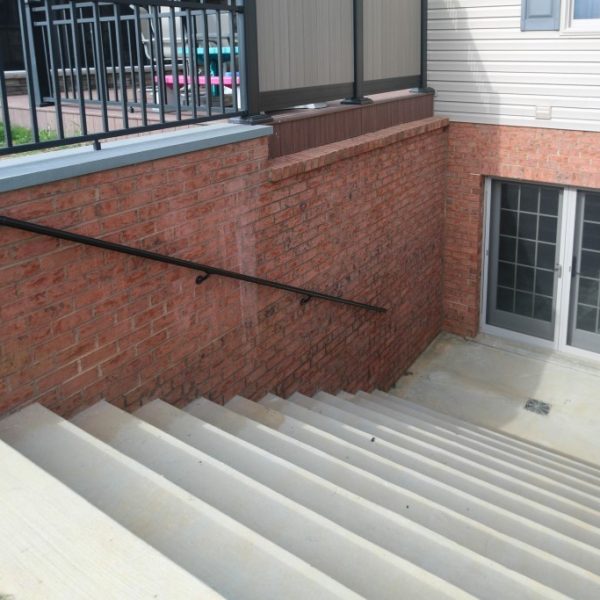

Continuous Handrail
