Regis 3220 Residential Aluminum Fence

2 Rail – Flat Top

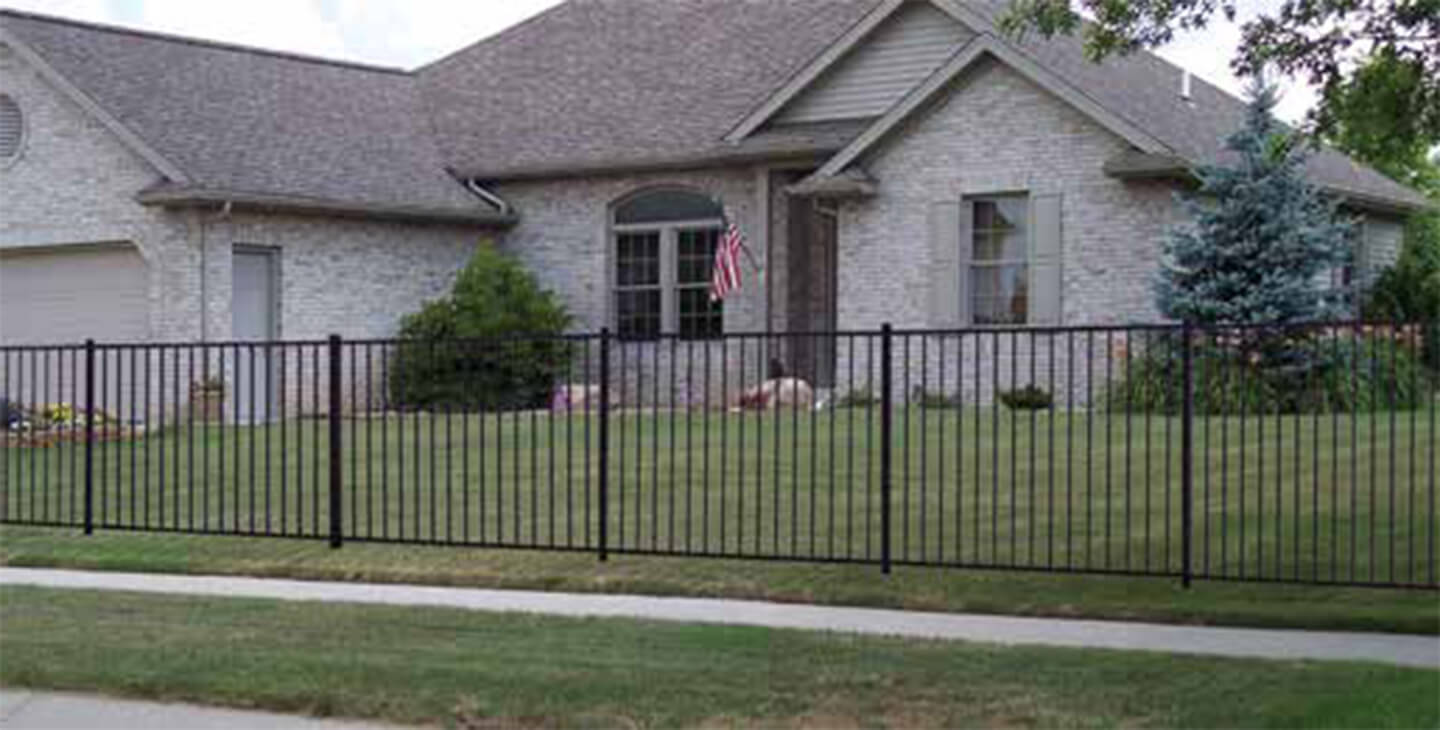

Regis 3220 - Fence Style 1

*Meets National Pool Code Requirements for Height and Spacing. Check Local Pool Code Requirements.

Simple, yet classically elegant, this fence offers evenly spaced pickets merging into a solid single bottom and top railing. A favorite selection for enclosing patios and recreational areas!



  • Height: 48″
  • Length: 6′ Sections
  • Standard Posts: 2″ x 2″ (.060″)
  • Heavy Duty Posts: 2″ x 2″ (.125″)
  • Gate Posts: 2″ x 2″ (.060″) w/ inserts – .310 wall
  • Gate Posts: 2″ x 2″ (.090″) w/ inserts – .270 wall
  • Gate Posts: 4″ x 4″ (.125″)
  • Gate Posts: 6″ x 6″ (.185″)
  • Post Caps: Flat (standard) 2″, 4″, 6″
  • Post Caps: Ball (optional) 2″, 4″
  • Rails: 1 1/8″ (.065″) w x 1″ (.085″) h
  • Pickets: 5/8″ x 5/8″ (.045″)
  • Picket Spacing: 3.792″ between pickets
  • Section Options: Bracketed System
  • Lifetime Limited Warranty
  • Available in 12 colors



3000 Series – Features & Benefits

  • Screwless Panels – No Screws
    Hidden Picket Fasteners (Patent #US 7,152,849 B2)
    Notched Rails
  • Standard Sections… Rack 24” in 6’
    Double Punched Sections Optional
  • Verified AAMA 2604-10 Compliant
    Powder Coated Aluminum Fence
    Posts: 6063-T6; Rails: 6063-T6;
    Pickets: 6063-T52
  • Gates – All Rails & Pickets Welded
  • Assembled Sections for Quick Installation
  • Finials: Spear (Standard); Quad & Triad (Optional)
  • 9 Fence Models, 6 Heights & 12 Standard Colors
  • Lifetime Limited Warranty*
  • All Regis 3000 Series Sections are Stored in Our Fence-Stacker Storage System
    • Every Fence-Stacker Unit is a Fully Enclosed Six-sided Crate
      with Each Vertical Section in a Plastic Sleeve.
    • Safe Shipping
    • Convenient Storage
    • Easy Access

3000 Series Accessories

3000 Series Finials

Finials

Quad (optional), Triad (optional), Spear (standard)

3000 Series Post Caps

Post Caps

Flat (standard), Ball (optional)

3000 Series Swivel Rail Mount

Swivel Rail Mount

3000 Series Wall Rail Mount

Wall Rail Mount

3000 Series Rail

Rail

Notched

3000 Series Ring Kit

Ring Kit

(optional)

3000 Series Welded Plate

Welded Plate Option

3000 Series Post Flair

Post Flair

(Welded plate only)

3000 Series Short Picket

Short Picket Option

3000 Series – Matching Gate System

Regis Gates use Non-corrosive Hardware. Refer to Regis Entry Gates Brochure for Larger Models.

Self Closing Hinges

Self Closing Hinges

Lokk Latch Delux

Lokk Latch Deluxe

Gate Posts

Gate Posts

U-Frame Gate

U-Frame Gate

  • Gate Heights: 36”, 42”, 48”, 60”, 72”
  • Gate Widths: 36”, 42”, 48”, 60”, 72”
  • Top & Mid Rails: 11/8” (.100”) w x 1” (.100”) h
  • Bottom Rail: 11/2” w x 3” h (.125”)
  • Side Rails: 11/2” x 11/2” (.125”)
  • Pickets: 5/8” x 5/8” (.045”)
  • Picket Spacing: Less than 4” (Divided Evenly to Reach Equal End Spacing)
  • Gate Options: Single Arch, Continuous Arch (for Double Gates), Designer Arch (for Double Gates over 6’ Wide)

Pool Gate

Pool Gate

(with arch option)

  • Gate Heights: 3220 – 48”; 3233 – 55” 3230 – 55”
  • Gate Widths: 36”, 42”, 48”, 60”*, 72”*
  • Gate Rails: 11/8” (.125”) w x 1” (.170”) h
  • Side Rails: 11/2” x 11/2” (.125”)
  • Pickets: 5/8” x 5/8” (.045”)
  • Picket Spacing: Less than 4” (Divided Evenly to Reach Equal End Spacing)
  • Gate Options: Single Arch, Continuous Arch (for Double Gates) Designer Arch (for Double Gates over 6’ Wide)

* Includes Bracing on Corners.

Step 1

Powder Coat - Step 1

The raw premium-grade aluminum is inspected to be free of blemishes and is not exposed to the outdoor elements.

Step 2

Powder Coat - Step 2

The product enters a heated acidic cleaning stage to remove extrusion debris and fabrication oils.

Steps 3 to 6

Powder Coat - Step 3 to 6

CLEAN: City water rinse
CLEANER: Recycling reverse osmosis water rinse
CLEANTEST: Pure reverse osmosis water rinse
SEALER: Dried-in-place aluminum sealer

Steps 7 and 8

Powder Coat - Step 7 and 8

A 200 MPH air blast removes water drops from the pre-treated aluminum. A convection oven completes the dry-off process.

Step 9

Powder Coat - Step 9

Powder is applied with 18 automated and 2 manual spray guns. Compressed process air is dried to -35°F Dew Point for superior adhesion.

Step 10

Powder Coat - Step 10

The powder coating is then bonded and adhered to the aluminum sub-straight in a 400 degree cure stage.
