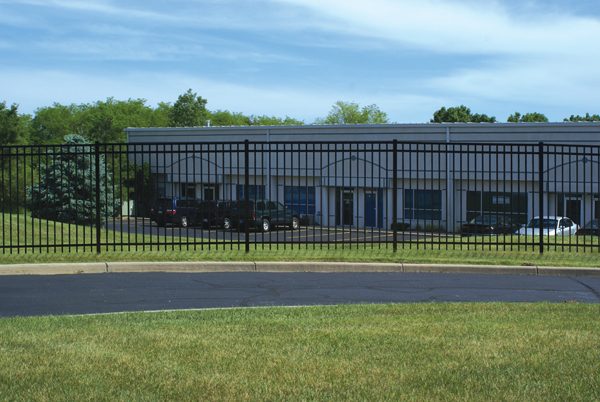

Regis 5230 Industrial Aluminum Fence

3 Rail – Flat Top

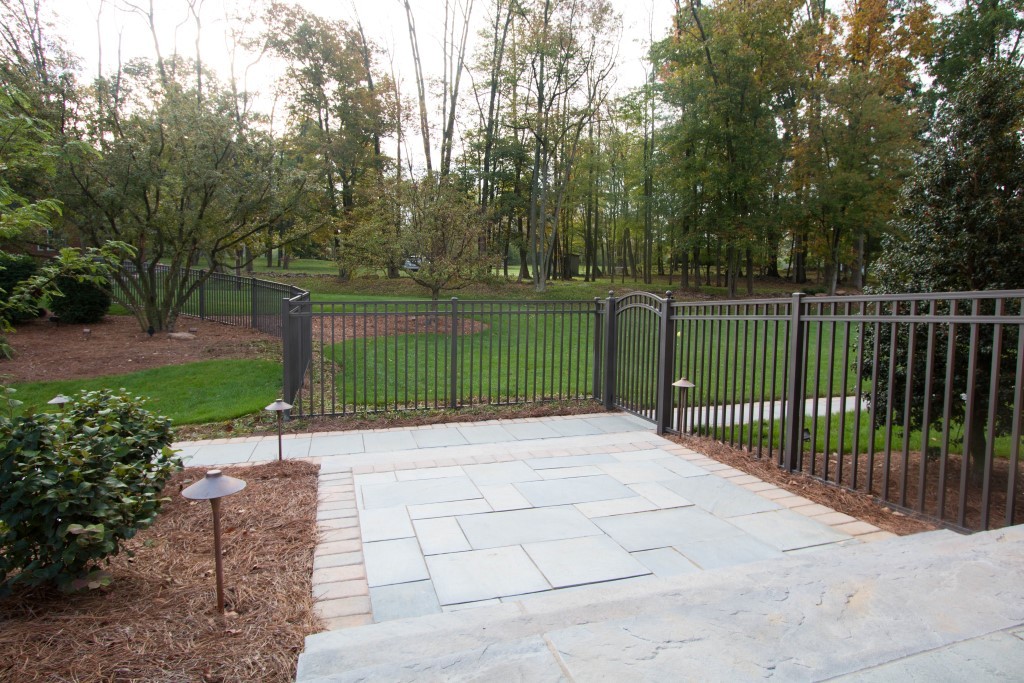

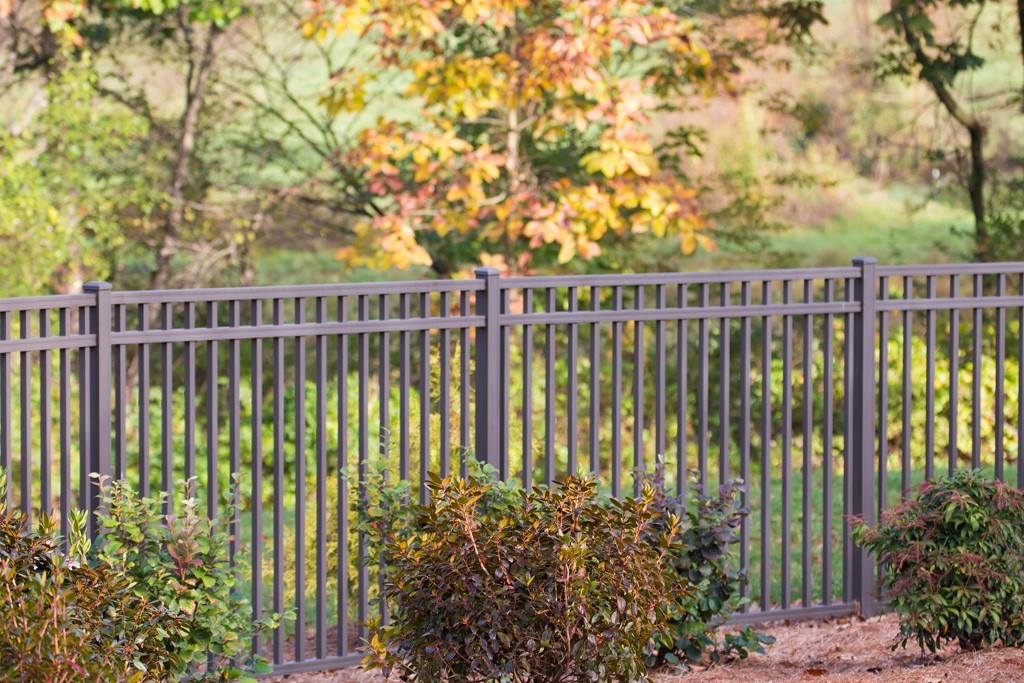

Regis 5230 - Fence Style 1   Regis 5230 - Fence Style 2

*Meets National Pool Code Requirements for Height and Spacing. Check Local Pool Code Requirements.

  • Height: 48”H, 55”H, 60”H, & 72”H
  • Width: 8′ Sections (Flush Bottom or Pass Thru Picket)
  • Standard Posts: 2.5″ x 2.5″ (.090″) Recessed
  • Optional Heavy-Duty Posts: 2.5″ x 2.5″ (.125″ Wall) Recessed
  • Optional Larger Posts: 4″ x 4″ (.125″ Wall) Recessed 6” x 6” (.185” Wall)
  • Post Caps: Flat (standard) Ball (optional)
  • Optional: Low Voltage or Solar Post Cap Lights
  • Optional: Welded Plate for Surface Mount Post
  • Rails: 1.5”H (.095”) x 1.5” W (.070”)
  • Pickets: 1″ x 1″ (.062″)
  • Picket Spacing: 3.725″ between pickets.
  • Standard Width Gates: 36”, 42”, 48”, 60”, 72”
  • Optional: Custom Gate Sizes available
  • Routed Posts with Pre-assembled notched sections for easy installation
  • Level and Swivel Brackets available for versatility
  • Warranty



Where To Buy ⪼

5000 Series – Features & Benefits

  • Screwless Panels – No Screws
    Hidden Picket Fasteners (Patent #US 7,152,849 B2)
    Notched Rails
  • Standard Sections – Rack 17” in 8’
    Optional: Double Punched Sections Rack up to 26” in 8’ (Excludes Sections with Ring Kit Option)
  • Verified AAMA 2604-10 Compliant
    Powder Coated Aluminum Fence
    Posts: 6063-T6; Rails: 6063-T6;
    Pickets: 6063-T52
  • Standard Welded Gates – 36”, 42”, 48”, 60”, 72”

Optional Custom Size Gates Available

Optional Racked Gates Available

  • Assembled Sections for Quick Installation
  • Routed Posts for Quick Installation
  • Ring Kit Options Available (Select Styles)
  • Puppy Picket Options Available (Short Picket)
  • 19 Different Fence Models in 7 different Height Options
  • Lifetime Limited Warranty*
  • Available in 12 colors
  • Individually wrapped posts and sections for Safe Shipping

Step 1

Powder Coat - Step 1

The raw premium-grade aluminum is inspected to be free of blemishes and is not exposed to the outdoor elements.

Step 2

Powder Coat - Step 2

The product enters a heated acidic cleaning stage to remove extrusion debris and fabrication oils.

Steps 3 to 6

Powder Coat - Step 3 to 6

CLEAN: City water rinse
CLEANER: Recycling reverse osmosis water rinse
CLEANTEST: Pure reverse osmosis water rinse
SEALER: Dried-in-place aluminum sealer

Steps 7 and 8

Powder Coat - Step 7 and 8

A 200 MPH air blast removes water drops from the pre-treated aluminum. A convection oven completes the dry-off process.

Step 9

Powder Coat - Step 9

Powder is applied with 18 automated and 2 manual spray guns. Compressed process air is dried to -35°F Dew Point for superior adhesion.

Step 10

Powder Coat - Step 10

The powder coating is then bonded and adhered to the aluminum sub-straight in a 400 degree cure stage.

Gate System

  • Matching Gates to your style of Fence
  • Standard Welded Walk Gates – 36”W, 42”W, 48”W, 60”W, 72”W

Optional Custom Size Gates Available

Optional Racked Gates Available

  • Standard Welded Entry (Driveway Gates) – 84”W up to 384”W Double Gate

Optional Custom Size Gates Available

Optional Racked Gates Available

  • Picket Spacing: Less than 4” (Divided Evenly to Reach Equal End Spacing)
  • Optional: Arch Top Option or Designer Arch Top (Select Widths)
  • Optional: Double Gate W/ Optional Continuous Designer or Arch Top
  • Ring Kit Options Available (Select Styles)
  • Puppy Picket Options Available (Short Picket)
  • Verified AAMA 2604-10 Compliant
  • Lifetime Limited Warranty*
  • Available in 12 colors
  • Individually wrapped for Safe Shipping
