Regis 4131

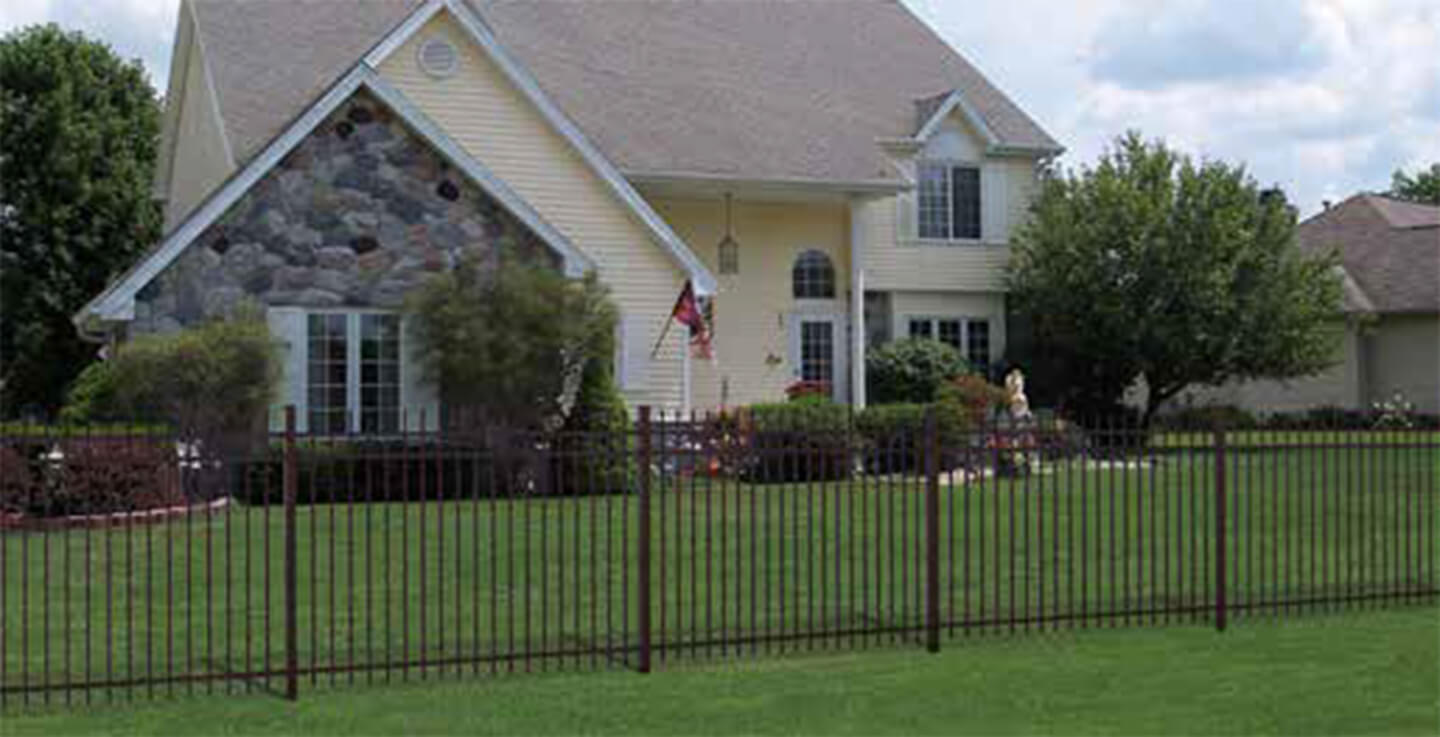

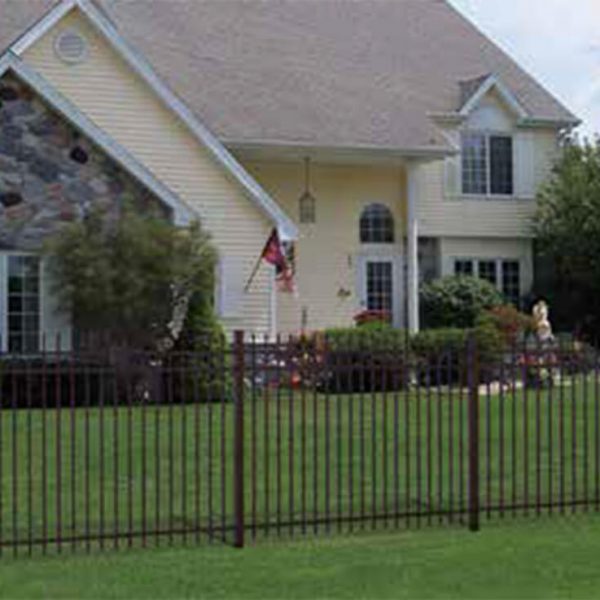

Regis 4131 Commercial Aluminum Fence

3 Rail – with Spears

Regis 4131 - Fence Style 1



  • Heights: 48″, 60″ & 72″
  • Length: 8′ Sections
  • Standard Posts: 2″ x 2″ (.065″)
  • Heavy Duty Posts: 2 1/2″ x 2 1/2″ (.090″)
  • Heavy Duty Posts: 2 1/2″ x 2 1/2″ (.125″)
  • Gate Posts: 2 1/2″ x 2 1/2″ (.065″) w/ inserts – .190 wall
  • Gate Posts: 4″ x 4″ (.125″)
  • Gate Posts: 6″ x 6″ (.185″)
  • Post Caps: Flat (standard) 2 1/2″, 4″, 6″
  • Post Caps: Ball (optional) 2 1/2″, 4″
  • Rails: 1 1/4″ (.070″) w x 1 1/2″ (.110″) h
  • Pickets: 3/4″ x 3/4″ (.053″)
  • Picket Spacing: 3.963″ between pickets
  • Finial Option: Triad & Quad
  • Section Options: Bracketed System, Routed System Ring Kit, Short Picket Option w/ Spear, Short Picket Option w/ Finial
  • Lifetime Limited Warranty
  • Available in 19 colors



4000 Series Features and Benefits

  • 6063-T6: Posts & Rails; 6063-T52: Pickets.
    Higher Quality Aluminum… A Great Value.
  • Custom Blended Super Durable Polyester TGIC Powder Coating.
    Verified AAMA 2604-10 Compliance.
  • Verified AAMA 2604-10 Compliance.
    Premium Architectural Grade Durability.
  • Custom Colors Available.
    Unlimited Color Choices.
  • Hidden E-Clip Picket Fastener. (Patent #US 7,152,849 B2)
    No Unsightly Screws!
  • Spear, Quad or Triad Finials.
    Decorative Choices.
  • Assembled Sections.
    Saves Time… for Easier Installation.
  • Secure Factory Packaging.
    Eliminate Freight Damage.
  • Lifetime Limited Warranty.
    Peace of Mind… Lasts for Decades.
  • Matching Gates with Hardware.
    Esthetically Pleasing… Easy to Adjust… Can Be Securely Locked.

4000 Series Accessories

4000 Series Finials

Finials
Quad (optional)
Triad (optional)
Spear (standard)

4000 Series Post Caps

Post Caps
Flat (standard)
Ball (optional)

4000 Series Ring Kit

Ring Kit

4000 Series Designer Posts

Designer Posts
6” x 6”
4” x 4”
21/2” x 21/2”

4000 Series Hidden Screw Rail Mount

Hidden Screw Rail Mount

4000 Series Swivel Rail Mount

Swivel Rail Mount

4000 Series Hidden E-Clip Fasteners

Hidden E-Clip Fasteners
(Patent #US 7,152,849 B2)

3000 Series – Matching Gate System

Regis Gates use Non-corrosive Hardware.

4000 Series Self Closing Hinges

Self Closing Hinges

4000 Series Lokk Latch

Lokk Latch Deluxe

4000 Series Designer Posts

Gate Posts – 6”, 4”, 21/2”

4000 Series U-Frame Gate

U-Frame Gate

  • Gate Heights: 48”, 60”, 72”
  • Gate Widths: 36”, 42”, 48”, 60”, 72”
  • Top & Mid Rails: 11/4” (.070”) w x 11/2” (.110”) h
  • Bottom Rail: 11/2” w x 3” h (.125”)
  • Side Rails: 11/2” x 11/2” (.125”)
  • Pickets: 3/4” x 3/4” (.053”)
  • Picket Spacing: Less than 4” (Divided Evenly to Reach Equal End Spacing)
  • Gate Options: Single Arch, Continuous Arch (for Double Gates), Designer Arch (for Double Gates over 6’ Wide)

4000 Series Pool Gate

Pool Gate

  • Gate Heights: 4220 – 481/2”  4230 – 54”; 4233 – 54”
  • Gate Widths: 36”, 42”, 48”, 60”*, 72”*
  • Rails: 11/4” (.070”) w x 11/2” (.110”) h
  • Side Rails: 11/2” x 11/2” (.125”)
  • Pickets: 3/4” x 3/4” (.053”)
  • Picket Spacing: Less than 4” (Divided Evenly to Reach Equal End Spacing)
  • Gate Options: Single Arch, Continuous Arch (for Double Gates) Designer Arch (for Double Gates over 6’ Wide)

Step 1

Powder Coat - Step 1

The raw premium-grade aluminum is inspected to be free of blemishes and is not exposed to the outdoor elements.

Step 2

Powder Coat - Step 2

The product enters a heated acidic cleaning stage to remove extrusion debris and fabrication oils.

Steps 3 to 6

Powder Coat - Step 3 to 6

CLEAN: City water rinse
CLEANER: Recycling reverse osmosis water rinse
CLEANTEST: Pure reverse osmosis water rinse
SEALER: Dried-in-place aluminum sealer

Steps 7 and 8

Powder Coat - Step 7 and 8

A 200 MPH air blast removes water drops from the pre-treated aluminum. A convection oven completes the dry-off process.

Step 9

Powder Coat - Step 9

Powder is applied with 18 automated and 2 manual spray guns. Compressed process air is dried to -35°F Dew Point for superior adhesion.

Step 10

Powder Coat - Step 10

The powder coating is then bonded and adhered to the aluminum sub-straight in a 400 degree cure stage.
